Article 4.2.1E : How to connect AO (ANALOG OUTPUT) in meter.

Example- LG 5110 with 1 Analog Output

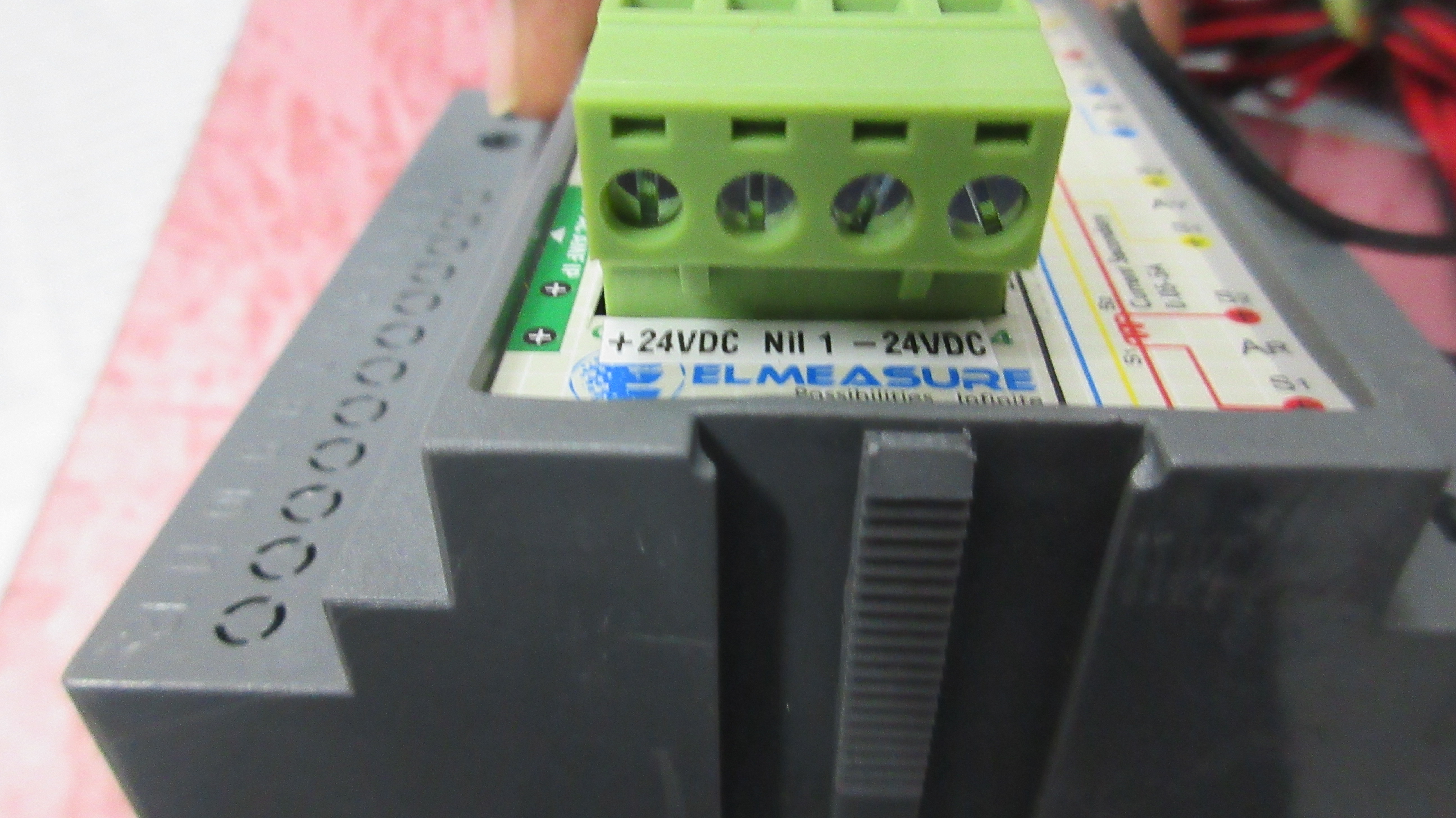

Connect 24 Volt  supply to end terminals marked as +24VDC & -24VDC- This will energies  the circuit

Connect the terminals marked as 1 & -24VDC (Parallel wires) to the PLC- This will provide the Analog Output of 4-20mA.
