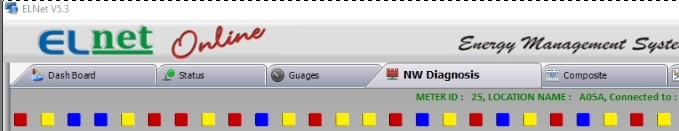

Article 3.1.1C : Why NW diagnosis (In online module) shows different colours?

These colors indicate DG selection.

For example - If you select DG as R phase, red color will display.
