Article 4.1.1.2 : Total KVA is less than the individual RYB per phase KVA summation in EN8400/EN8410.

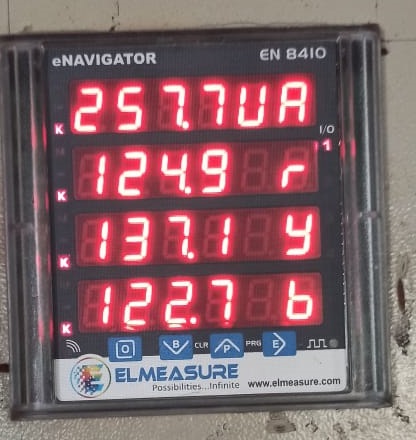

Please find the below image of EN meter FYR.

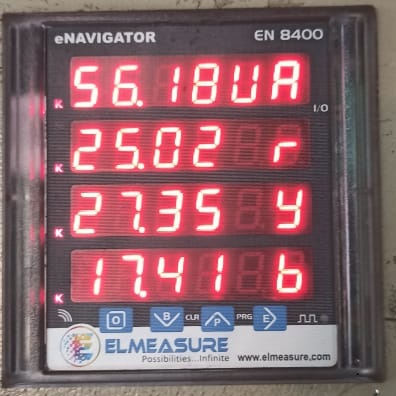

In EN8400 has interchanged CT S1 and S2 in the B phase and minus value comes in the KW B phase. Also, neutral current An = 5.9 A comes and as shown in image total KVA does not match the addition of individual RYB phase KVA.
After a correction in B Phase CT S1 and S2 (interchanged), KW reading minus changed to positive An =0.0 comes and Total KVA matches the addition of RYB Phase also the Amp phase angle has set in order.
Note: If this type of issue comes check the Amp phase angle and Voltage phase angle are in order and CT S1 and S2 are connected accordingly.
Related Articles
Article 4.1.1.3 : Why in EN meter only one phase PF & KW value comes very less and KWh consumption is less with reference main meter?
Please find the below images of the EN meter display to understand the situation of a meter. As shown in the above images we can see in the Y phase PF & KW is very less compare to the other two-phase. Here KW depends on the PF value because of PF ...Article 4.1.1.24S: PF value not show accurate in EN meters compare to reference meter.
Solution: PF value depends on current and voltage phase angle. First, check the voltage Phase angle in the meter it should be 0, 120, 240. and verify the CT and PT connection in meter accordingly RYB. An issue on the site: PF value does not change ...Article 2.1A : Relation between Line Current and Phase Current.
Line current is the current through any one line between a three-phase source and load. Phase current is the current through any one component comprising a three-phase source or load. Fig: 1 STAR connection Line & Phase relation. Fig: 2 DELTA ...Article 3.5.1A : EN/PN - Data Logger - Version 4 - Software
For EN/PN above version 04.07, this updated software should be used to download the data. Click this link for software download page, http://www.elmeasure.com/resources/softwareArticle 4.1.1.1 : Why Neutral current An value comes in EN8410 & EN8400 if there is no current in neutral?
What is the neutral current in a 3 phase system? The neutral current in a three-phase, four-wire wye system represents the imbalance of the three-phase conductors, also known as the "hot" conductors. If the three hot conductors are equal, as in the ...
