Article 4.3.1I : Prepaid meter : How to reset meter balance to 0 [Via Modbus POLL]?

How to  make 'Low balance blink 0' in Modbus Poll?

 1) In Modbus Poll Click on 'Setup'

 2) Click on 'Read/Write Definition'

 3) Enter the Address value as '6961'

      Quantity '2'

      (In general Slave ID should be entered with the particular Device ID, Function Code : 03 Holding Register)

 4) Click 'OK'

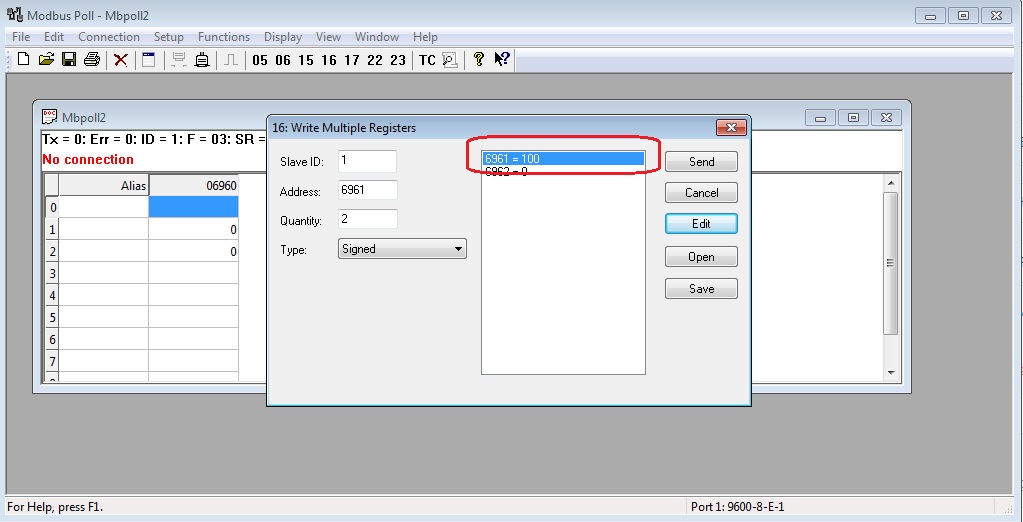

 5) Select Register '16' (Refer below picture)



 6) Click on the 6961 and click Edit (Refer below picture)



 7) Enter the value as '0' and then click 'Send'.
