LG 6400DMC not showing the instant demand value

LG 6400DMC not showing the instant demand value

Step-1:-

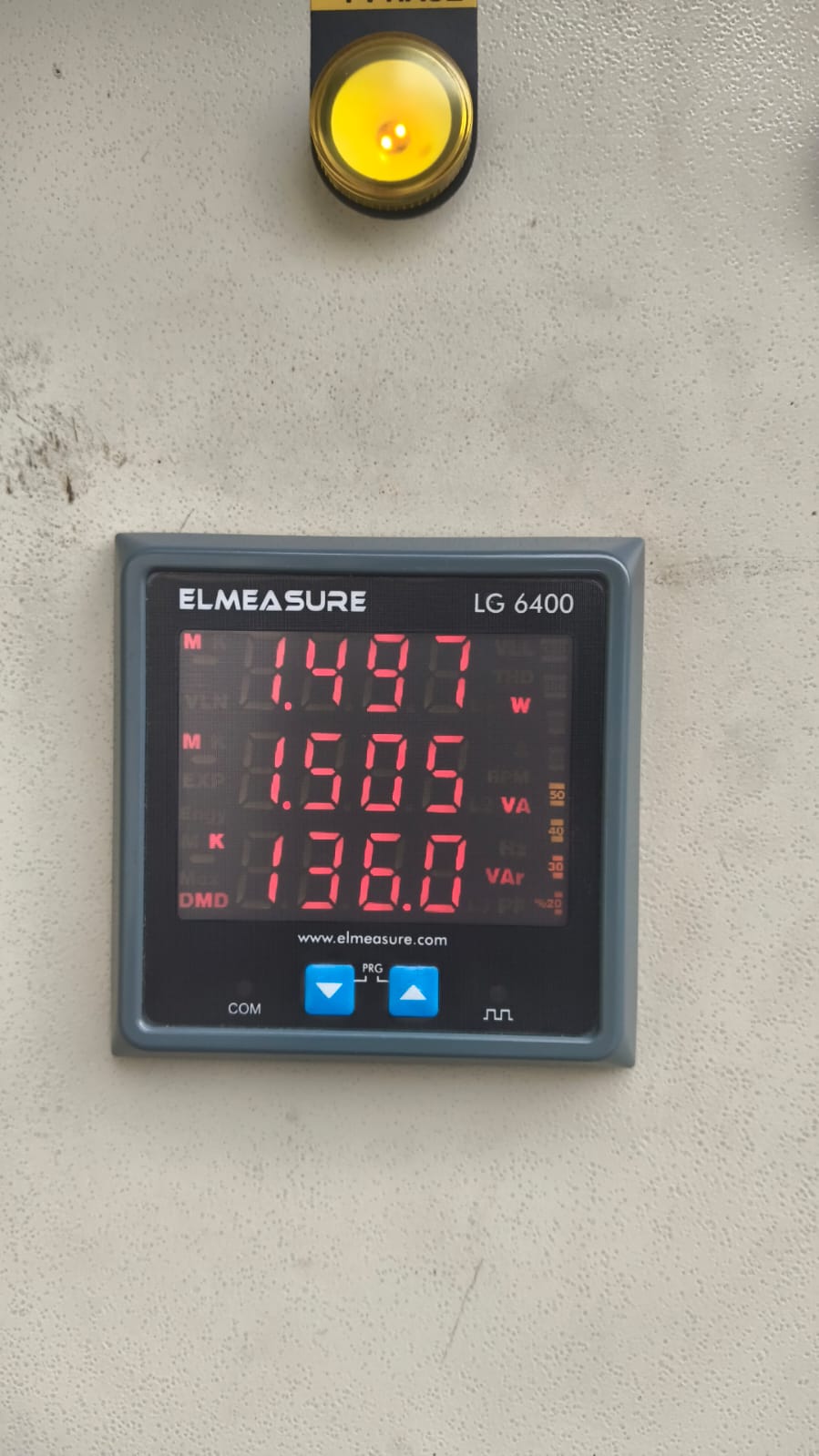

Check the CT connection in the meter in Watts Parameter

Like the image shown below



STEP-2:-

If the CT Get reversed means meter will shows minus in the watts  parameter.

If CT is get reversed means Instead of S1 connect S2 wire and then instead of S2 connect S1 wire. Minus will disappear now meter started to show the Demand reading in Demand Parameter page like image shown below
