Article 2.1A : Relation between Line Current and Phase Current.

Line current is the current through any one line between a three-phase source and load. Phase current is the current through any one component comprising a three-phase source or load.

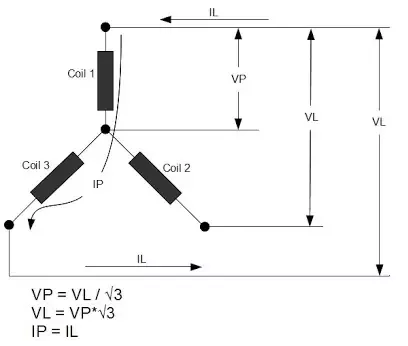

Fig: 1 STAR connection Line & Phase relation.

Fig: 2 DELTA connection Line & Phase relation.
