Article 4.6.1.0 : Reverse Amp error in iPFC Relay.

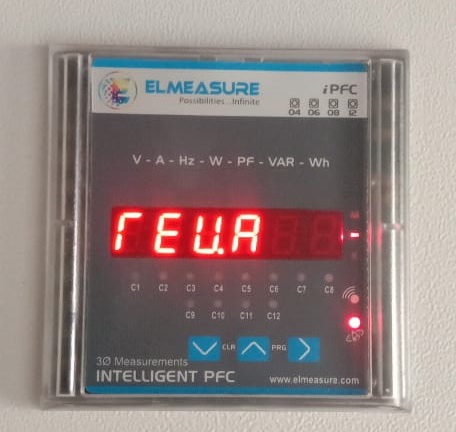

Please find the attached image of error in a relay below.

This error generated due to improper CT connection is done. If 3CT connected first to make sure every CT S1 & S2 are connected accordingly. If an error did not resolve then check CT connection interchange Sequentially.
